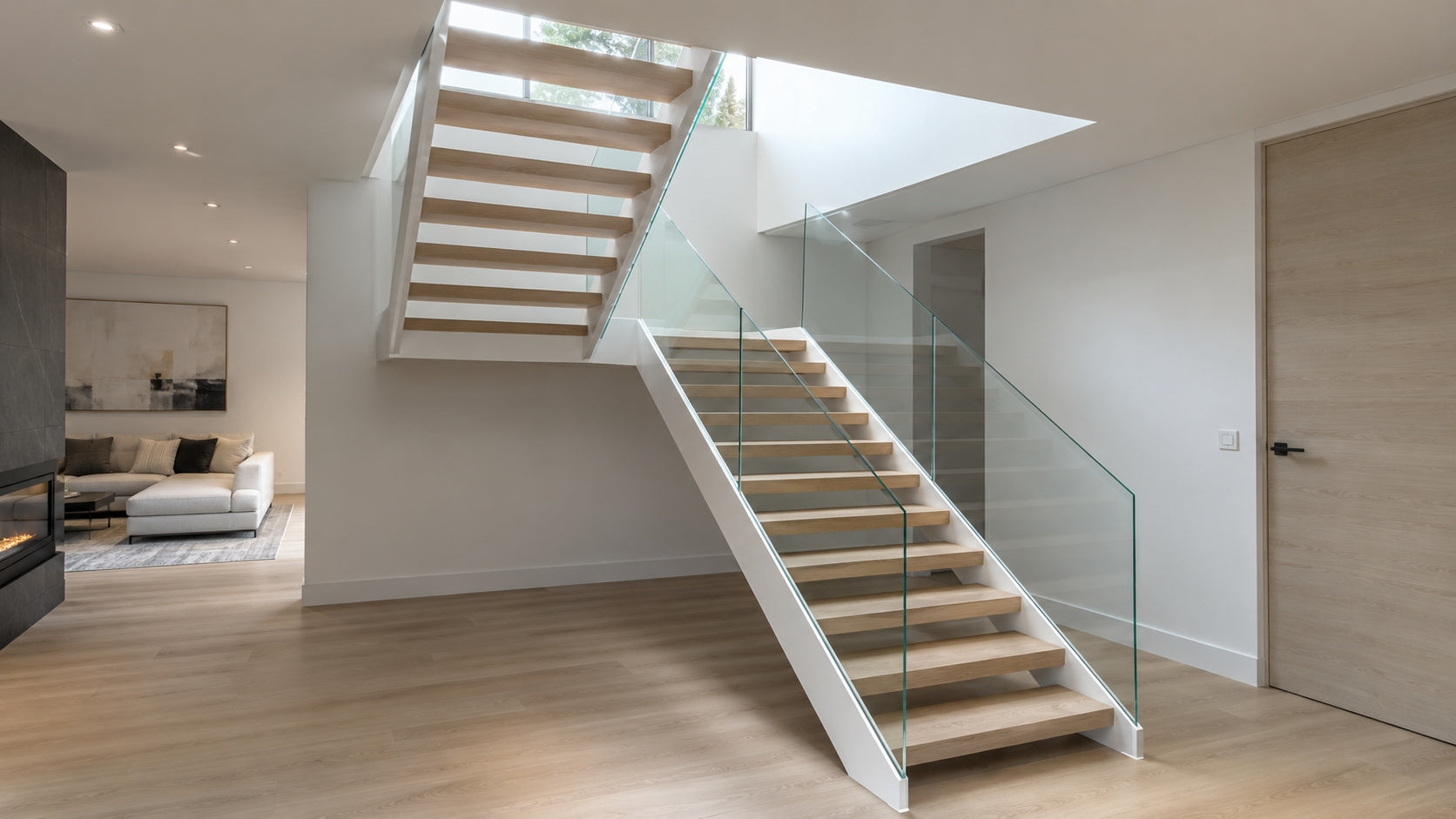

A stair stringer is one of the most important structural parts of a staircase. It supports the stair treads, defines the stair angle, carries loads between floors, and strongly influences how the finished stair looks and feels.
For a traditional staircase, the stringer may be hidden behind drywall, trim, or closed side panels. For a modern floating stair, the stringer is often part of the design itself. It may be a visible steel mono stringer, a pair of slim side stringers, or a concealed support system that allows the treads to appear light, open, and architectural.
That is why understanding the stair stringer matters. It is not just a technical part. It affects safety, comfort, layout, railing coordination, installation, cost, and the overall architectural character of the home.
At Elevated Stairs, we design custom floating stair systems for modern residential projects, remodels, and architectural interiors. This guide explains what a stair stringer is, how different stringer types work, and what homeowners, builders, contractors, architects, and designers should consider before choosing a stair structure.
What Is a Stair Stringer?
A stair stringer is the structural support that carries the stair treads and transfers loads to the building. In simple terms, it is the backbone of the staircase.
On a typical stair, the treads are the horizontal surfaces you step on. The risers are the vertical spaces or panels between each step. The stringer supports those treads and controls the rise and run of the stair.
Depending on the design, a stair stringer may be made from wood, steel, or another structural material. It may sit along both sides of the stair, run through the center, attach to the wall, or be concealed inside the stair assembly.
In a floating stair system, the stringer becomes even more important because the design usually removes visual bulk. Open risers, exposed treads, glass railing, and minimal supports all create a lighter appearance, but they also require careful structural planning.
What Does a Stair Stringer Do?
A stair stringer has several key functions.
First, it carries the load. Every time someone walks on the stair, the tread transfers weight into the stringer. The stringer then transfers that load into the floor, landing, wall, or structural connection points.
Second, it defines the stair geometry. The stringer controls the angle of the stair, the spacing of the treads, the number of risers, and the relationship between floor-to-floor height and available run.
Third, it supports the treads. On a modern floating stair, the treads may be thick wood, steel-reinforced wood, stone, glass, or another finish material. The stringer and tread connection must be designed so the treads feel solid, level, and secure.
Fourth, it influences code and comfort. Riser height, tread depth, headroom, guard height, handrail placement, and open riser limitations all relate to the stair layout. For many U.S. residential stairways, common IRC-based planning checks include 36-inch minimum stair width, 7 3/4-inch maximum riser height, 10-inch minimum tread depth, 6-foot-8-inch minimum headroom, and handrails between 34 and 38 inches above the stair nosing, though local code amendments and project conditions can vary.
Finally, it shapes the visual character of the stair. A heavy closed stringer creates a traditional look. A slim steel mono stringer creates a modern floating effect. A concealed wall-supported structure can make the treads look even more minimal.
Why the Stringer Matters More in Floating Stairs
Floating stairs are designed to feel open, light, and architectural. The treads appear to float because the structure is minimized, hidden, or visually refined.
That visual lightness is exactly why the stringer matters so much.
In a traditional stair, there are often more visible framing members, risers, walls, and side supports. These elements help distribute loads and hide construction details. In a floating stair, many of those elements are removed. The remaining structure has to work harder and look better.
A floating stair stringer must usually solve several problems at once:
It must support the treads safely.
It must align with the floor-to-floor height and stair opening.
It must coordinate with the railing system.
It must connect properly to the building structure.
It must look clean enough to remain visible.
It must allow the contractor to install the stair accurately on site.
This is why a floating stair should not be treated like a generic kit part unless the project conditions are extremely simple. The stringer should be selected and designed around the home, the layout, the finish materials, the railing preference, and the local code requirements.
Common Types of Stair Stringers
There are several types of stair stringers. Each one creates a different structural behavior and visual effect.
1. Closed Stringer
A closed stringer runs along the side of the staircase and conceals the ends of the treads and risers. This is common in traditional residential stairs.
Closed stringers create a finished, solid look. They are often used when the stair is built between walls or when the homeowner wants a more conventional appearance.
For modern floating stairs, closed stringers are less common because they reduce the open, airy effect. However, they can still be useful in transitional interiors where the stair needs to feel clean but not overly minimal.
2. Open or Cut Stringer
An open stringer, sometimes called a cut stringer, has a notched profile that follows the shape of the treads and risers. The stair steps are more visible from the side.
This type of stringer can feel lighter than a closed stringer, especially when paired with hardwood treads or a more decorative stair design. It still reads as a traditional stair structure, but it exposes more craftsmanship and geometry.
Open stringers are common in wood-framed stairs, but they are not the same as a true floating stair stringer. They still usually rely on side support rather than a central structural spine.
3. Dual Stringer
A dual stringer stair uses two stringers, usually one on each side of the stair or two parallel steel supports beneath the treads.
Dual stringers provide strong support and can work well for wider stairs, heavier tread materials, or designs that need a more balanced structural system. In a modern steel stair, dual stringers can be designed with a slim profile so the stair still feels refined.
A dual stringer system may be a good choice when the project requires extra stiffness, when the stair is wider than usual, or when the design calls for a more symmetrical structural expression.
4. Mono Stringer
A mono stringer stair uses one central support beam, typically made from steel. The treads attach to brackets or plates connected to the central stringer.
This is one of the most popular structures for modern floating stairs because it creates a clean, open look. From many angles, the treads appear to project from a single central spine. When paired with thick wood treads and glass railing, a mono stringer can become the main architectural feature of the space.
Mono stringer stairs are especially suitable for modern homes, open living areas, loft spaces, and interiors where the stair should feel sculptural without becoming visually heavy.
However, a mono stringer requires careful engineering and precise fabrication. Since one central beam carries the stair, the steel size, bracket spacing, tread connection, top attachment, bottom attachment, and railing coordination all matter.
5. Wall-Supported or Concealed Stringer
A wall-supported floating stair uses a structural wall or concealed steel support to carry the treads. In some designs, the treads appear to cantilever from the wall.
This can create a very minimal appearance, but it depends heavily on the wall structure. A standard non-structural partition wall usually cannot support this type of stair without reinforcement.
Wall-supported systems often require earlier planning because the structure may need to be integrated into framing, blocking, steel plates, or engineered wall elements before finishes are installed.
This approach can be beautiful, but it is not always the most practical choice for remodels unless the wall can be opened and reinforced.
6. Zigzag Stringer
A zigzag stringer follows the step profile in a sawtooth shape. It can be made from steel plate or other structural materials.
This style is more sculptural and expressive. Instead of hiding the stair geometry, it highlights it. A zigzag stringer can work well in contemporary interiors where the stair is meant to be a design statement.
The tradeoff is that it may look busier than a mono stringer, and the fabrication can be more complex.
7. Curved or Helical Stringer
Curved stringers are used for curved, spiral, or helical stairs. These are typically more complex than straight-run stairs because the geometry, tread shapes, railing transitions, and structural behavior are all more involved.
A curved stair stringer can create a dramatic architectural effect, but it usually requires more design coordination, more precise fabrication, and a higher budget.
For most residential floating stair projects, straight mono stringers, dual stringers, or switchback structures are more common.
Mono Stringer vs Dual Stringer: Which Is Better?
There is no single best stair stringer for every project. The right choice depends on the layout, structural conditions, visual goals, tread width, railing type, budget, and installation environment.
A mono stringer is usually best when the homeowner wants a clean floating look with minimal visual structure. It is often the preferred option for modern interiors because it keeps the sides of the stair open.
A dual stringer is often better when the stair is wider, when extra stiffness is needed, or when the design calls for a more grounded structural expression. It can also help distribute loads more evenly across the tread width.
A wall-supported system is best when the design goal is extreme minimalism and the building structure can support it. This option should be planned early, especially in new construction.
For many modern homes, mono stringer stairs offer the best balance of visual lightness, structural clarity, and buildability. But the final decision should always be based on actual project dimensions and site conditions.
Wood Stringers vs Steel Stringers
Traditional residential stairs often use wood stringers. Wood is easy to cut, familiar to contractors, and suitable for many conventional staircases.
Modern floating stairs, however, often use steel stringers because steel can provide high strength with a slimmer profile. A steel stair stringer can support thick wood treads while maintaining a clean architectural appearance.
Steel is also easier to fabricate into precise shapes for mono stringers, dual stringers, support brackets, landing plates, and custom stair layouts. When finished with powder coating or another protective finish, a steel stringer can become both a structural component and a visual design feature.
For exterior applications, steel finish selection becomes even more important. Outdoor stair stringers may need weather-resistant coatings, galvanized treatment, drainage-aware detailing, and material choices that can handle moisture, UV exposure, and temperature changes.
For interior projects, a matte black steel stringer paired with warm white oak treads is one of the most requested modern combinations. It feels architectural, clean, and timeless without making the stair look cold or commercial.
How the Stringer Affects the Look of a Floating Stair
The stringer is one of the biggest visual decisions in a stair project.
A central mono stringer creates a light, sculptural look. It works especially well when the surrounding space is open and the homeowner wants the stair to be a focal point.
A pair of side stringers can look more linear and grounded. It may feel slightly more structured but still modern if the steel is slim and well detailed.
A concealed support can make the stair look almost weightless, but it requires stronger coordination with the wall and building structure.
A zigzag steel stringer creates a bold architectural statement. It is less minimal but more expressive.
The railing system also changes how the stringer is perceived. Clear glass railing makes the stair feel more open and allows the stringer and treads to remain visible. Cable railing adds a lighter industrial or contemporary character. Metal posts and handrails can make the stair feel more structured.
If you are still comparing stair system options, it is useful to look at the stringer, tread, and railing as one complete stair package rather than separate parts.
How the Stringer Affects Safety and Code Planning
A stair stringer is not only about appearance. It has a direct relationship to safety and code planning.
The stringer layout affects riser height, tread depth, stair width, headroom, landing position, and railing coordination. For open riser stairs, the gap between treads can also become a code consideration depending on the project and jurisdiction.
In many residential projects, the local Authority Having Jurisdiction, often called the AHJ, has the final say on code interpretation. Architects, engineers, builders, and inspectors may also be involved.
This is especially important for floating stairs because they often look different from traditional stairs. A stair may appear visually simple, but the structure still needs to be carefully designed.
Important code-related questions include:
How many risers are required based on the floor-to-floor height?
What tread depth will create a comfortable stair?
Is there enough available run?
Is there enough headroom at the floor opening?
Will the open riser condition be acceptable?
What guard or handrail system is required?
How will the railing attach to the stair or floor?
Does the stair need engineering documentation?
Are there local amendments that affect the project?
A good floating stair design starts with these questions before fabrication begins.
The Anatomy of a Modern Floating Stair Stringer
A modern floating stair stringer may look simple, but it usually includes several coordinated parts.
The main steel beam or support member carries the overall stair load.
Tread brackets or plates connect each tread to the stringer.
Top connection plates attach the stringer to the upper floor, landing, or structural framing.
Bottom connection plates anchor the stringer to the lower floor or slab.
Tread fasteners secure the wood or other tread material to the support brackets.
Railing attachment points may connect to the treads, stringer, floor, or side structure depending on the railing system.
Finish coatings protect the steel and define the visual appearance.
Each part has to be aligned correctly. If the bracket spacing is off, the treads may not sit level. If the top connection is not coordinated with the framing, installation becomes difficult. If the railing is not planned early, the finished stair may require field modifications.
That is why custom shop drawings are so important. They translate the design concept into dimensions, connection details, and installation logic that the contractor can follow.
What Dimensions Are Needed to Design a Stair Stringer?
Before a custom stair stringer can be designed, the project team needs accurate site information.
The most important dimension is floor-to-floor height. This is the vertical distance from the finished lower floor to the finished upper floor. It determines the number of risers and the approximate rise per step.
The second key dimension is the available run. This is the horizontal space available for the stair. If the run is too short, the stair may become too steep or may need a landing, turn, or different layout.
The stair opening dimensions are also critical. The opening affects headroom, railing clearance, and the relationship between the stair and the upper floor.
Desired stair width matters because wider treads may require different support assumptions. A wider floating tread can feel more substantial, but it may also increase structural demands.
Layout direction also matters. A straight stair is usually simpler. An L-shaped stair, U-shaped stair, or switchback stair requires more coordination around landings and turns.
Railing preference should be discussed early. Glass railing, cable railing, metal railing, and wood handrail options all affect attachment details.
The project location is also important because shipping, local code expectations, climate, and installation planning can vary.
For a faster review, homeowners and builders should prepare site photos, architectural drawings, basic dimensions, tread preference, railing preference, and target timeline before they request a quote.
How a Custom Stair Stringer Is Designed
A custom stair stringer typically goes through several stages.
1. Project Review
The design team reviews the project location, drawings, photos, floor-to-floor height, opening size, available run, and preferred stair style.
At this stage, the goal is not only to draw a stair. The goal is to understand whether the desired layout is practical for the actual space.
2. System Direction
Next, the team determines the most suitable structural direction. This may be a mono stringer, dual stringer, wall-supported system, or another custom approach.
The decision should consider visual goals, structural needs, installation access, railing type, and budget.
3. Preliminary Design
A preliminary stair model or concept layout helps confirm the number of steps, stair direction, tread spacing, and overall visual relationship to the space.
For homeowners, this stage makes the stair easier to understand. For builders and contractors, it helps identify site constraints early.
4. Shop Drawings
Shop drawings provide more detailed dimensions and fabrication information. They may show the stringer, treads, connection plates, brackets, railing coordination, and installation references.
For custom floating stairs, shop drawings are one of the most important steps because they reduce guesswork before production.
5. Fabrication
Once the design is confirmed, the steel stringer can be fabricated. Depending on the project, the steel components may be welded, drilled, finished, and prepared for installation.
A well-planned steel stringer should minimize field welding and reduce the need for major site modifications.
6. Finish and Quality Check
The stringer finish may include powder coating or another protective coating. Matte black is a common interior choice because it pairs well with warm wood treads and modern railing systems.
Before shipment, the components should be checked for alignment, finish quality, and completeness.
7. Delivery and Installation Support
For a custom floating stair, successful installation depends on clear documentation, accurate components, and contractor coordination.
The stair should arrive with the main steel structure, treads, railing components if included, and project-specific installation guidance.
Installation Considerations for Builders and Contractors
A stair stringer installation is not just about placing a beam and attaching treads. The surrounding structure must be ready.
Before installation, the contractor should confirm floor levels, finished floor thickness, wall conditions, landing framing, opening dimensions, and anchor locations.
For a steel mono stringer, the top and bottom connection points are especially important. The stringer must be properly aligned, plumb, and secured before treads are installed.
Treads should be installed level and consistent. Even small variations can become noticeable because floating stairs expose the rhythm of each tread.
Railing should be coordinated before final installation. Glass railing, cable railing, and metal posts may require different attachment points. If railing loads are transferred into the treads or stringer, that needs to be considered in the design.
For remodels, the contractor may need to verify hidden framing conditions after demolition. Existing walls, floors, and openings may not match drawings perfectly.
The best installation outcomes happen when the stair supplier, homeowner, builder, and contractor communicate early.
How Stair Stringers Affect Cost
Stair stringer cost depends on more than the stringer itself.
A simple straight mono stringer is usually more cost-efficient than a complex curved or multi-landing custom structure. But the final price also depends on the tread material, railing system, finish, stair width, number of steps, engineering complexity, and delivery requirements.
Major cost factors include:
Stringer type
Stair layout
Floor-to-floor height
Number of treads
Tread width and thickness
Wood species or tread material
Railing type
Steel finish
Indoor or outdoor application
Connection complexity
Shop drawing and design requirements
Shipping destination
Installation scope
For example, a straight interior mono stringer with wood treads and glass railing may be relatively straightforward compared with a U-shaped stair with landings, custom railing, wider treads, and more complex site connections.
If you are budgeting for a modern floating stair, pricing guidance can help you understand the typical range before requesting a detailed quote.
Interior vs Exterior Stair Stringers
Interior and exterior stair stringers have different priorities.
For interior stairs, the main concerns are design, comfort, code coordination, finish quality, and integration with flooring, walls, and railing.
For exterior stairs, durability becomes more important. The stringer may need to handle rain, sun exposure, temperature changes, and moisture. Outdoor steel should be finished appropriately, and tread materials should be chosen with weather exposure in mind.
Exterior floating stairs may also require drainage-aware details, slip-resistant walking surfaces, and careful railing material selection.
A design that works beautifully indoors may not be suitable outdoors without material and finish changes.
Common Mistakes When Choosing a Stair Stringer
One common mistake is choosing the stair stringer only by appearance. A stair may look beautiful in a photo, but the same structure may not work for every home.
Another mistake is ignoring the available run. If the horizontal space is too short, the stair may become too steep or may require a landing.
A third mistake is treating the railing as an afterthought. Railing affects safety, code compliance, appearance, and structural coordination.
Another common issue is providing rough dimensions instead of finished dimensions. Floor-to-floor height should be measured from finished floor to finished floor whenever possible.
Some homeowners also underestimate the importance of the upper and lower connection points. A floating stair is only as reliable as the structure it connects to.
Finally, many buyers compare stair quotes without comparing scope. One quote may include steel stringer only. Another may include treads, railing, drawings, finish, delivery, and support. These are not the same product.
When reviewing options, compare the complete stair package, not just the price of the stringer.
What to Prepare Before Requesting a Quote
If you are planning a custom stair stringer or floating stair system, prepare the following information before contacting a supplier:
Project location
Floor-to-floor height
Stair opening dimensions
Available run
Desired stair width
Preferred layout direction
Site photos
Architectural drawings if available
Tread preference
Railing preference
Indoor or outdoor application
Target project timeline
Budget expectation if available
This information helps the design team understand the project faster and provide a more accurate recommendation.
If you are ready to move forward, you can request a quote with your drawings, dimensions, and site photos.
How to Choose the Right Stair Stringer for Your Home
Start with the design goal.
If you want the cleanest modern floating look, a mono stringer may be the best starting point.
If you want a wider stair or a stronger visual frame, a dual stringer may be better.
If you want the treads to appear as if they are coming directly from the wall, a wall-supported system may be possible, but it needs early structural coordination.
If you want the stair to become a sculptural feature, a zigzag or custom steel stringer may be worth considering.
Then look at the project conditions.
Do you have enough run?
Is the stair opening already built?
Is this a remodel or new construction?
Will the stair connect to wood framing, steel framing, or concrete?
Do you want glass railing or cable railing?
Will the stair be indoors or outdoors?
Who will install it?
The best stringer is the one that balances design, structure, code planning, fabrication, installation, and budget.
You can also review project examples to see how different stringer types look in real homes.
Why Work With a Custom Floating Stair Supplier?
A custom floating stair is not just a collection of parts. It is a coordinated system.
The stringer, treads, railing, connection plates, finish, layout, and installation details all need to work together.
A custom supplier can help translate your design intent into a buildable stair system. This is especially valuable when the project involves open risers, glass railing, steel structure, premium wood treads, unusual openings, or tight architectural requirements.
For homeowners, this reduces uncertainty.
For builders and contractors, it reduces field coordination problems.
For architects and designers, it helps preserve the design intent while making the stair practical to fabricate and install.
If you are comparing floating stair systems, look for a supplier that can support both design clarity and technical coordination.
Frequently Asked Questions About Stair Stringers
What is a stair stringer?
A stair stringer is the structural support that carries the stair treads and transfers loads into the building. It also helps define the stair angle, tread spacing, and overall layout.
Is a stair stringer always visible?
No. In traditional stairs, the stringer may be hidden behind walls, trim, or closed side panels. In floating stairs, the stringer is often visible and becomes part of the design.
What is a mono stringer stair?
A mono stringer stair uses one central support beam, usually steel, to support the treads. It is popular in modern floating stairs because it creates an open, minimal appearance.
Are mono stringer stairs safe?
Yes, mono stringer stairs can be safe when they are properly designed, fabricated, and installed for the specific project. The stringer, tread connections, railing system, and building attachment points all need to be coordinated.
What is the difference between a mono stringer and a dual stringer?
A mono stringer uses one central support. A dual stringer uses two supports, usually along the sides or beneath the treads. Mono stringers are often more minimal, while dual stringers can provide a stronger visual frame and may be useful for wider stairs.
What material is best for a floating stair stringer?
Steel is commonly used for modern floating stair stringers because it provides strength, precision, and a slim architectural profile. Wood is common for traditional stairs, but it is less common for high-end floating stair structures.
Can a stair stringer be used outdoors?
Yes, but outdoor stair stringers require proper material selection and finish protection. Exterior steel should be finished for weather exposure, and tread and railing materials should be selected for outdoor durability.
Does the stair stringer affect railing design?
Yes. The railing may attach to the treads, stringer, floor, or side structure. Glass railing, cable railing, and metal railing each require different coordination.
How much does a stair stringer cost?
The cost depends on stringer type, stair layout, number of treads, finish, railing system, engineering complexity, and shipping. A steel stringer by itself is not the same as a complete floating stair system with treads and railing.
What information do I need for a stair stringer quote?
You should provide project location, floor-to-floor height, stair opening dimensions, available run, desired width, layout direction, site photos, drawings, tread preference, railing preference, and target timeline.
Final Thoughts
A stair stringer may look like one component, but it controls much of the staircase experience. It affects structure, safety, comfort, appearance, installation, and cost.
For modern floating stairs, the stringer is even more important because the design depends on visual lightness and structural precision. A well-designed stringer makes the stair feel solid, refined, and integrated into the home. A poorly planned stringer can create installation challenges, code concerns, or a stair that does not match the original design intent.
Whether you are a homeowner planning a remodel, a builder coordinating a custom home, a contractor preparing for installation, or a designer shaping a modern interior, the best starting point is to treat the stair as a complete system.
Elevated Stairs can help you evaluate the right structure, tread direction, railing approach, and project path for a custom floating stair. To continue learning, you can visit our floating stairs blog or contact our team with your project details.
