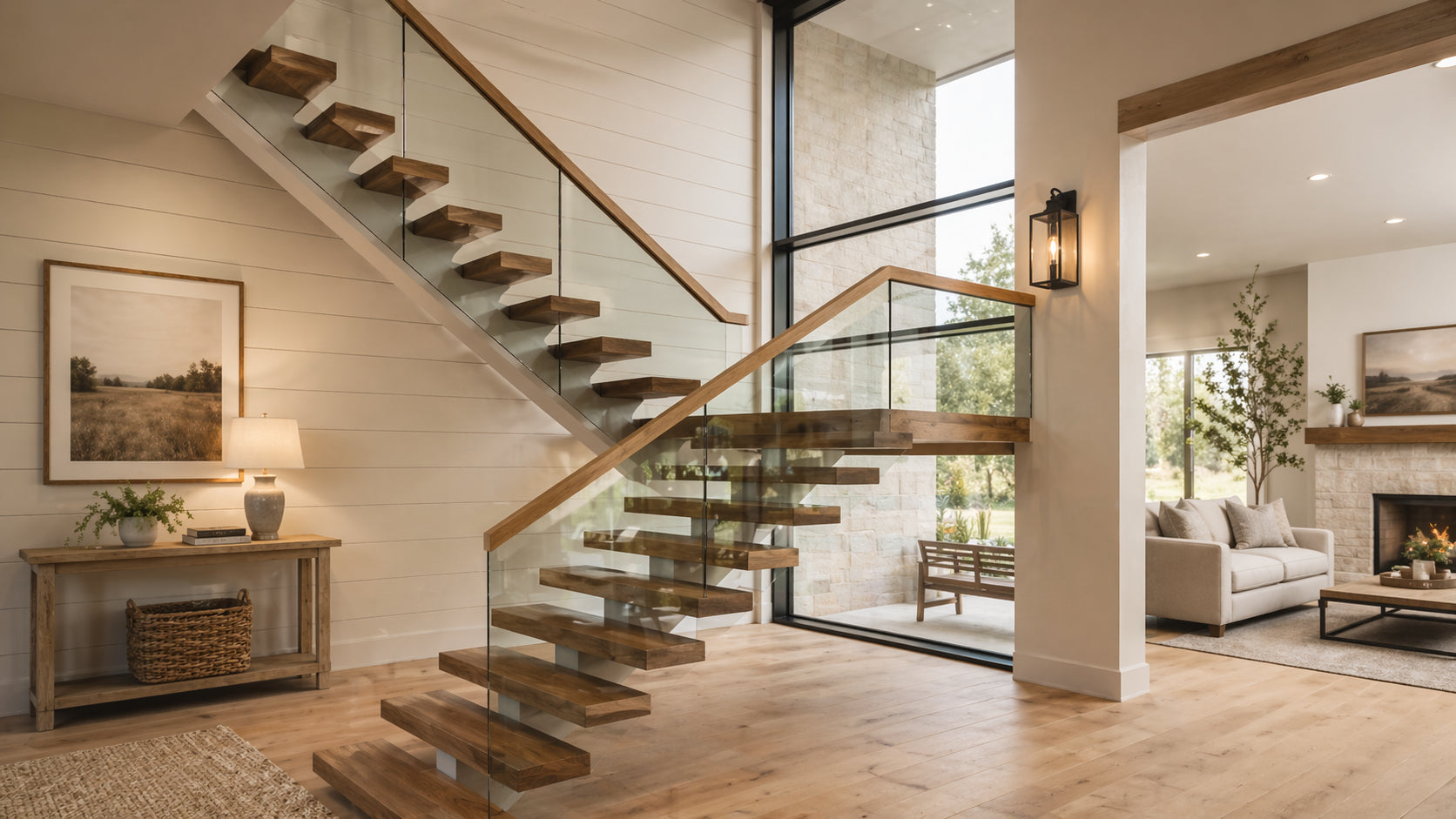

Floating stairs tend to get judged by their visual impact first. Open risers, clean lines, premium wood treads, and minimal railing systems make a strong impression. But the success of a custom stair project usually depends less on the rendering and more on the documentation that happens before fabrication.
That is where floating stairs shop drawings matter.
For homeowners, builders, and architects, shop drawings are the point where a stair concept becomes a buildable product. They clarify dimensions, attachment logic, finish coordination, and installation assumptions before steel is cut and treads are made. On serious residential projects, they are not paperwork for its own sake. They are a control tool.
A well-developed drawing set also helps everyone understand whether the selected stair system is realistic for the site conditions, budget, and schedule. If you are still comparing structural approaches, it helps to review different floating stair system options before the drawing phase starts.
What floating stairs shop drawings actually are
Shop drawings are the project-specific technical drawings used to prepare a custom stair for fabrication and installation. They are more detailed than an inspiration image, a concept sketch, or a preliminary 3D rendering.
In many custom residential projects, shop drawings are used to define:
- final stair geometry
- rise and run relationships
- stair width and tread thickness
- support locations
- wall, floor, or landing attachment points
- railing layout and coordination
- finish direction and material notes
- field-verification requirements before production
For floating stairs, this stage matters even more because the visual simplicity of the finished stair usually depends on hidden structural logic being resolved correctly.
Why shop drawings matter before fabrication starts
They turn design intent into buildable information
A floating stair may look simple in a rendering, but the real project has to answer practical questions:
- Where is the stair supported?
- Is it wall-supported, stringer-supported, or tied into adjacent framing?
- What is the floor-to-floor height after finish build-up is accounted for?
- Are the landing conditions final?
- What substrate exists where the railing will attach?
- Are the tread sizes coordinated with the finished opening and headroom assumptions?
A rendering can suggest proportions. Shop drawings define what will actually be made.
They reduce fabrication, delivery, and installation risk
Once fabrication begins, flexibility drops fast. If the wrong attachment plate is built into the steel, if tread pockets are spaced incorrectly, or if the field opening differs from the assumed dimensions, the cost of correction rises quickly.
That is why experienced project teams use stair shop drawings to catch problems while revisions are still manageable. In many cases, that review process affects both schedule certainty and floating stair pricing factors because unresolved conditions often create rework, custom adjustments, or site delays.
What is typically included in floating stair shop drawings
The exact contents vary by supplier and project complexity, but strong floating stair drawings usually include the following categories.
Overall stair geometry and critical dimensions
This section defines the basic shape and fit of the stair:
- floor-to-floor height
- number of risers and treads
- rise and run layout
- stair width
- tread depth and thickness
- landing dimensions where applicable
- overall footprint within the stair opening
This is the part many homeowners focus on first, because it is the easiest to read. It is also where builders and architects quickly spot whether the design aligns with the actual opening, structural framing, and surrounding circulation.
For custom projects, even small dimensional assumptions matter. Finished flooring thickness, drywall build-up, tile buildup, and landing edge conditions can all affect the final geometry.
Structural support and attachment details
This is usually the most critical part of the package.
Shop drawings often show where the stair structure attaches to the building and what those assumptions are based on. Depending on the stair design, that may include:
- top and bottom connection conditions
- wall attachment zones
- floor or slab edge connections
- landing support interfaces
- plate locations, brackets, or concealed steel support points
- framing assumptions that must be confirmed in the field
For floating stairs, this is the area where the difference between a concept and a fabricatable solution becomes most visible. Many clients do not realize that a “floating” appearance can be achieved through different structural strategies, each with different planning implications. Reviewing modern stair structure comparisons early can prevent later redesign.
Tread, railing, and finish coordination
A good drawing set does not stop at structure. It also coordinates visible finish elements so the final stair reads as one coherent system.
That can include:
- tread material and nominal thickness
- tread overhang or edge profile
- railing position relative to tread edges
- post or glass mounting logic
- wood handrail interface
- finish notes for exposed steel
- alignment between stair, landing, and railing lines
This is especially important on premium projects, where the visual relationship between wood treads, steel structure, and glass or cable railing strongly affects the final result. Readers comparing style and scope can also browse built project examples to see how these details change from one stair design to another.
Field-verification notes and revision tracking
Strong custom stair drawings usually include notes about what has been assumed, what must be field-verified, and which revision is current.
That matters because floating stair fabrication often happens only after a site has reached a certain level of readiness. In many remodels and custom homes, framing, finish layers, and adjacent wall conditions evolve during construction. Shop drawings help document whether dimensions were based on plan sets, site measurements, or updated field conditions.
Revision discipline also matters. A staircase is rarely an isolated product. It interacts with flooring, drywall, railing, millwork, lighting, and sometimes glazing. One untracked change can affect fabrication.
Shop drawings vs renderings vs engineering drawings
These three items get confused often.
Renderings are visual. They help communicate design intent, material direction, and overall appearance.
Shop drawings are fabrication and coordination documents. They define the stair that is intended to be built.
Engineering drawings or calculations may be separate, depending on the project, jurisdiction, and supplier workflow. They typically address structural adequacy, connection logic, or stamped review requirements where needed.
A homeowner may think the rendering is the important deliverable because it is easier to understand. A builder usually cares more about the buildable detail. An architect often needs both.
The key point is simple: custom stair drawings are not decorative paperwork. They are where responsibility, assumptions, and scope become clearer.
Where shop drawings fit in the floating stair project workflow
In a typical custom residential stair project, shop drawings sit between early design selection and final fabrication.
A simplified workflow often looks like this:
- Initial concept, measurements, and stair layout discussion
- Preliminary pricing based on known scope and assumptions
- System selection, material direction, and railing decisions
- Site information review, including framing or structural conditions
- Shop drawing development
- Client, builder, architect, or engineer review
- Field verification and drawing revisions if needed
- Final approval before fabrication
- Production, finishing, packaging, and delivery
- Installation coordination
This is one reason serious buyers should not treat an online estimate as a final number. The real quote gets stronger as more conditions are clarified. If you are trying to understand the full floating stair project workflow, shop drawings are one of the most important checkpoints.
What homeowners, builders, and architects often underestimate
Several issues get underestimated again and again.
Hidden support conditions
A stair may be designed around assumptions about wall structure, slab edges, or landing support that are not yet confirmed. If those assumptions change, the stair details may need to change with them.
Finish build-ups
Tile, wood flooring, leveling layers, and tread finish thickness can all shift critical elevations more than people expect.
Railing coordination
Glass railing, cable railing, and other guard approaches do not just change appearance. They can also affect mounting logic, edge offsets, and installation sequencing.
Tolerance and site variation
Real sites are imperfect. Shop drawings help set the intended geometry, but field verification still matters because framing, walls, and floor conditions rarely land exactly as idealized in concept drawings.
Timing
One of the most common mistakes is approving fabrication before the site is ready for reliable confirmation. Another is waiting too long to involve the stair supplier, which compresses review time and increases the risk of avoidable revisions.
What to prepare before requesting or reviewing shop drawings
The better the inputs, the better the drawings.
For many custom residential projects, it helps to prepare:
- floor-to-floor height
- stair opening dimensions
- plan views and elevation references
- site photos
- framing or structural information where available
- preferred stair system
- preferred railing type
- tread material direction
- finish preferences for exposed steel
- any known schedule constraints
If the project team already has examples of the desired design language, sharing those early helps align expectations. A supplier can work faster and more accurately when the stair system, finish priorities, and site constraints are clearer from the start.
And if the project is moving from rough exploration to real procurement, this is usually the point where a forma custom stair quote request becomes more useful than back-and-forth guesswork.
What shop drawings do for pricing clarity
Shop drawings do not always create the initial budget number, but they often improve pricing accuracy.
That happens because they help define:
- actual stair size and complexity
- support approach
- landing requirements
- tread count and dimensions
- railing scope
- finish coordination
- fabrication difficulty
- installation assumptions
A straight stair with clean support conditions and a simple railing package is usually easier to price and fabricate than a stair with complex turns, challenging wall conditions, concealed connections, or heavy coordination between steel, wood, and glass.
So while drawings may not answer every cost question by themselves, they help separate rough allowances from real scope.
A short takeaway before fabrication begins
A floating stair can look minimal and effortless when it is finished. The process behind it is neither.
Shop drawings are the stage where appearance, structure, site conditions, and fabrication reality are brought into alignment. They help homeowners understand what they are actually buying, help builders coordinate installation conditions, and help architects protect design intent without ignoring construction reality.
If you are reviewing floating stair proposals, look closely at the drawing process. The quality of that step often tells you a lot about the quality of the project control behind it. For teams that want to discuss project-specific conditions directly, a technical stair planning conversation is often more productive than trying to finalize details from inspiration images alone.
FAQ
What are floating stairs shop drawings?
Floating stairs shop drawings are project-specific technical drawings used to prepare a custom stair for fabrication and installation. They usually show geometry, dimensions, attachment assumptions, tread details, railing coordination, and revision notes.
Are shop drawings the same as stair engineering drawings?
Not always. Shop drawings and stair engineering drawings can overlap, but they are not automatically the same thing. Shop drawings are typically used for fabrication and coordination, while engineering documents may separately address structural review, calculations, or stamped requirements when needed.
Can floating staircase fabrication start from a rendering alone?
In most custom residential projects, no. A rendering may communicate design intent, but fabrication usually requires more detailed custom stair drawings that define dimensions, support conditions, materials, and attachment logic.
Why do shop drawings matter in the floating stair installation process?
They help installers understand what was fabricated, where components are intended to connect, and what field conditions were assumed. That reduces confusion, helps sequencing, and lowers the chance of surprises during installation.
Do pre-fabricated stairs drawings still need field verification?
Often yes. Even if a stair is fabricated off-site, the drawing set usually depends on real site dimensions and support conditions. Prefabrication does not remove the need for accurate inputs.
What should I review before approving shop drawings?
Focus on overall dimensions, stair orientation, support assumptions, railing locations, tread specifications, finish notes, and any field-measurement requirements. If something is still uncertain at the site, approval may be premature.
