Floating stair brackets may look like a small part of the overall staircase, but they play a much larger role than most homeowners realize. In a custom floating stair system, brackets help connect the stair treads to the steel support structure, control alignment, and influence how clean the finished stair looks once it is installed.
For anyone planning a modern stair project, it is useful to understand that floating stair brackets are not simply decorative hardware. They are part of a larger system that may include a steel stair beam, a floating stair stringer, side stair frames, wood treads, railing posts, glass panels, cable railing hardware, and site-specific structural connections. If those pieces are not coordinated early, the final installation can become harder, more expensive, or less visually refined.
A well-designed floating stair project starts with the right structural approach, not just the right appearance. For a broader look at how different floating stair systems are configured, see modern floating stair systems.
What Are Floating Stair Brackets?
Floating stair brackets are steel support components that help hold individual stair treads in place. Depending on the stair design, they may be welded to a central mono stringer, attached to side frames, integrated into a wall-supported structure, or fabricated as part of a custom steel stair assembly.
In many custom residential projects, the bracket is not a loose, universal part that can be selected independently from the rest of the staircase. It is usually designed around several project-specific variables:
- stair width
- tread depth and thickness
- wood species
- number of treads
- stair beam or stringer type
- railing system
- fastening method
- available structural support
- installation sequence
- local code review and inspection requirements
This is why a floating stair bracket should not be evaluated only by how it looks in a product photo. The more important question is whether the bracket works with the entire stair system.
What Floating Stair Brackets Actually Do
They Support the Treads
The most obvious role of floating stair tread brackets is to support the wood treads. On a mono stringer stair, each tread may sit on a steel plate or bracket welded to the central beam. On a side-supported system, the tread may connect to side stair frames or steel plates positioned along the edges.
The bracket must provide a stable bearing surface for the tread. If the tread is thick, wide, or made from a dense hardwood, the support detail needs to account for the weight and the way people will actually use the stair. A bracket that looks minimal in a rendering still needs enough strength and connection area to support daily foot traffic.
This is one reason tread design and steel design should be developed together. Stair treads for floating stairs are not just boards cut to size. Their thickness, species, finish, pre-drilling, and fastening method all affect how the bracket should be detailed.
They Transfer Loads Into the Stair Structure
A floating stair does not literally float. The load has to go somewhere.
When someone steps on a tread, the force travels from the tread into the bracket, then into the stair beam, floating stair stringer, wall structure, or stair frame. From there, the load continues into the surrounding building structure.
That load path is the hidden logic behind a clean floating stair design. The finished stair may look simple, but the support system behind it must be carefully coordinated.
For example, a mono stringer stair often uses a central steel beam with welded tread support brackets. A double stringer stair may distribute support through two parallel steel members. A wall-mounted system may depend heavily on concealed blocking or structural wall conditions. Each approach changes how the brackets are designed and installed.
This is why bracket design should be reviewed as part of the complete stair system, not as a separate hardware choice.
They Help Control Alignment
Floating stairs expose mistakes quickly.
With a traditional closed stair, some small inconsistencies can be hidden by risers, trim, skirt boards, or wall finishes. Floating stairs have fewer places to hide. The treads are visible. The gaps are visible. The line of the stair is visible from multiple angles.
Brackets help establish the position of each tread. If the bracket layout is inconsistent, the treads may not align properly. Even small errors can create visible problems:
- uneven tread spacing
- inconsistent overhangs
- slight rotation from tread to tread
- misaligned nosing lines
- gaps that look unintentional
- difficulty fitting railing components later
For builders and installers, bracket accuracy is not a cosmetic detail. It affects the whole installation rhythm. A well-fabricated stair frame or stair beam with accurate bracket placement can reduce field adjustment and help the finished stair look intentional.
They Affect Railing Coordination
Railing is one of the most common areas where floating stair projects become more complicated than expected.
Glass railing, cable railing, and metal posts all require attachment points. Those attachment points need to coordinate with tread locations, bracket locations, and structural steel. If the railing decision is made too late, the team may discover that the preferred railing system conflicts with the bracket layout, tread edge detail, or available fastening area.
For example, a glass railing system may require careful planning for clamps, standoffs, embedded channels, or post locations. A cable railing system may require posts that resist cable tension and align cleanly with the stair geometry. These decisions can affect the tread, bracket, and stair frame design.
If you are comparing railing options for a custom stair project, review glass and cable railing options before finalizing the steel layout.
How Brackets Fit Into a Complete Floating Stair System

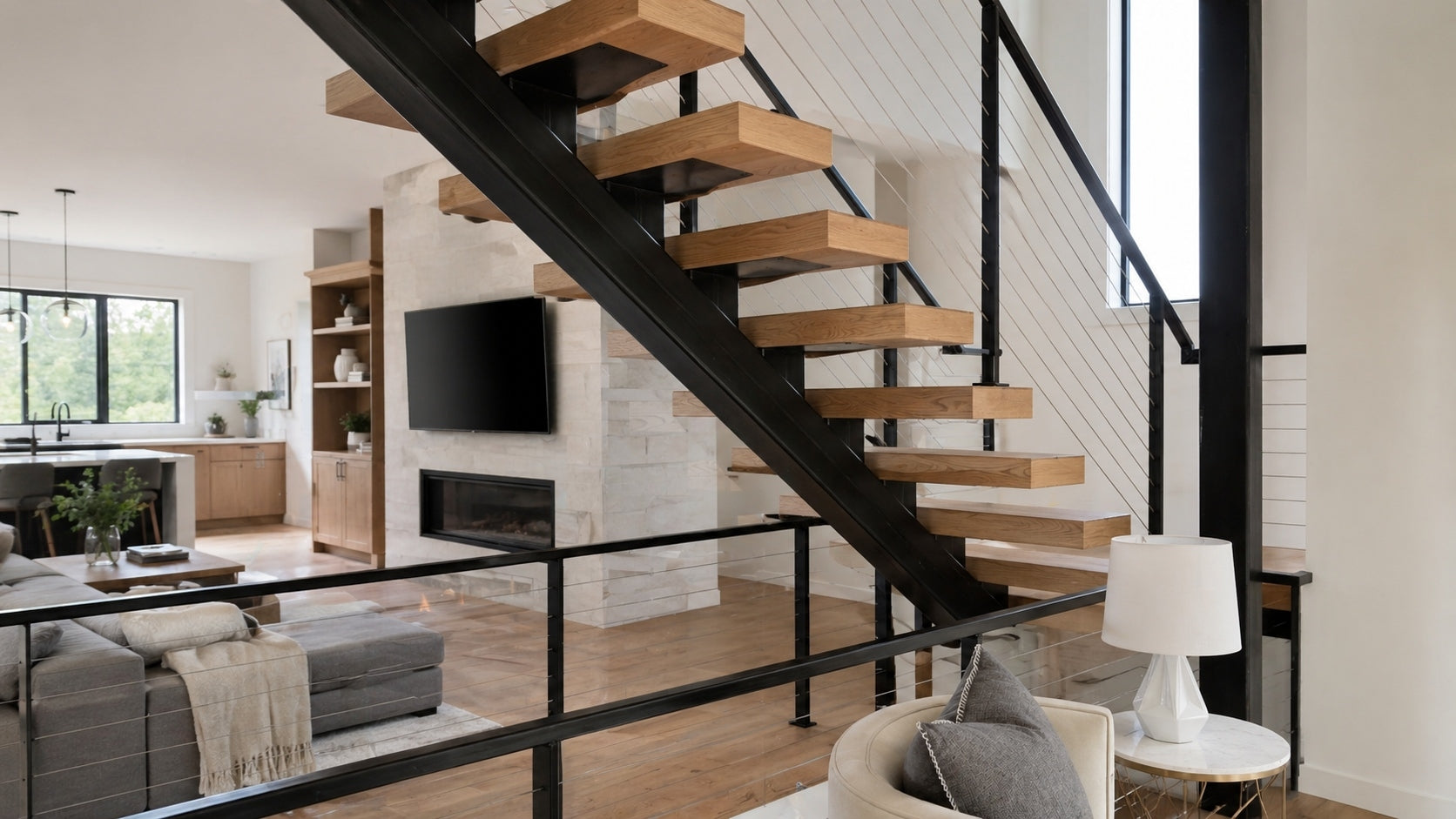

Mono Stringer Stair Brackets
A mono stringer stair typically uses one central steel beam running beneath the treads. In this type of system, the brackets or tread plates are commonly welded to the beam. The wood treads are then attached to those support plates.
This approach is popular because it creates a clean, modern profile. The stair beam becomes a strong visual element, while the treads appear to project from the centerline. The bracket design matters because it controls how each tread sits on the beam and how stable the stair feels underfoot.
For a mono stringer stair, bracket quality is closely tied to fabrication accuracy. The bracket spacing, angle, weld quality, and pre-drilled holes all influence installation.
Double Stringer and Side Frame Brackets
Some floating stairs use two steel stringers or side stair frames instead of a single central beam. This can provide a different aesthetic and may be useful when the design calls for more lateral stability or a different visual proportion.
In these systems, brackets may support the treads from both sides or connect the tread into a side steel frame. The bracket may be less visually prominent than in a mono stringer design, but it still affects alignment and installation quality.
A double stringer system can sometimes make railing integration more straightforward because the side structure may provide more predictable locations for railing support. However, this depends on the specific design, not just the category of stair.
For readers comparing system types, floating stair structure options can help clarify how mono stringers, double stringers, and related systems differ.
Wall-Mounted or Concealed Bracket Systems
Some floating stair designs rely on concealed brackets mounted into a wall structure. This can create a dramatic cantilevered appearance, but it also depends heavily on the building conditions.
A wall-supported stair is not simply a matter of adding hidden brackets into drywall. The wall must have suitable structural support, and the design must be reviewed carefully. The required backing, steel support, fastening strategy, and inspection expectations can vary by project.
This type of stair may be more demanding during planning because many critical components are hidden before the final finish is complete. If the wall structure is not ready, or if the bracket layout is not coordinated with framing, the installation can become difficult.
Why Bracket Design Matters During Installation
Small Tolerance Issues Become Visible
Floating stair installation is a tolerance-sensitive process. Each bracket affects the final position of the tread. If the bracket is slightly off, that error can carry through the stair.
A single issue may not seem dramatic on its own. But repeated across 12, 14, or 16 treads, small inconsistencies become much more noticeable. This is why accurate shop drawings, careful fabrication, and clear installation documentation matter.
For higher-end residential projects, the goal is not only to make the stair structurally functional. The goal is to make it look composed, balanced, and architecturally intentional.
Pre-Drilled Steel Reduces Field Guesswork
A custom steel stair system is often easier to install when the brackets, plates, and connection points are pre-planned and pre-drilled before shipment. This helps the installer understand where each tread should sit and how the hardware should connect.
Field drilling may still occur in some projects, depending on site conditions, but relying too heavily on field adjustment can increase risk. It may lead to inconsistent tread positioning, finish damage, longer installation time, or coordination issues with railing.
Pre-drilled brackets are especially helpful when the stair treads are finished wood. Once treads are stained, sealed, or finished, installers usually want to avoid unnecessary drilling, repositioning, or trial-and-error fitting.
Tread Preparation Must Match the Bracket Layout
The bracket and tread should be treated as a matched pair.
If the stair bracket is designed for a specific tread thickness, depth, and fastening pattern, the wood tread should be prepared accordingly. A mismatch can create several problems:
- screws or bolts not aligning with the support plate
- insufficient bearing surface
- exposed fasteners in undesirable locations
- difficulty keeping treads level
- increased risk of finish damage during installation
This is especially relevant for premium wood species such as white oak, red oak, maple, beech, or similar hardwoods. Dense hardwood treads need careful handling, clean machining, and a fastening plan that protects both appearance and performance.
If you are still evaluating materials, stair treads for floating stairs can help frame the decision before finalizing your quote request.
Railing Decisions Should Be Made Early
Many homeowners think railing is a later design decision. In a floating stair project, that assumption often creates problems.
The railing system may affect bracket placement, tread drilling, steel reinforcement, post spacing, glass panel sizing, and installation sequence. For example, a glass railing system attached through the treads may require different preparation than a side-mounted cable railing system.
If the railing is selected after the stair brackets and treads have already been fabricated, the project may require redesign, additional drilling, or field modification. That can affect cost, timeline, and finish quality.
A good planning rule is simple: decide the railing direction before final fabrication, not after the stair arrives on site.
Cost Drivers Related to Floating Stair Brackets
Floating stair brackets can influence cost, but they are rarely priced in isolation. In custom residential stair projects, bracket cost is usually tied to the steel fabrication package, stair structure, tread design, and installation complexity.
The main cost drivers include:
Steel complexity: A simple welded tread plate on a straight mono stringer is different from a complex bracket system with unusual angles, turns, landings, or custom side frames.
Number of treads: More treads usually mean more bracket locations, more fabrication time, more pre-drilling, and more quality control.
Stair width and tread size: Wider treads may require more robust support details, depending on the stair configuration.
Finish requirements: Visible steel brackets may need a cleaner finish than concealed support components. Powder coating, color selection, weld finishing, and touch-up planning can all affect cost.
Railing integration: Glass railing and cable railing systems can change bracket and tread preparation. Coordination becomes more important when railing hardware connects through or near the treads.
Site conditions: Existing framing, floor thickness, wall structure, landing conditions, and access to the installation area can all influence the final support strategy.
This is why rough online pricing can only go so far. A real quote needs project dimensions, layout, materials, and structural assumptions. For a clearer overview of budget variables, review floating stair pricing factors.
Common Mistakes People Underestimate
Thinking Brackets Alone Create the Floating Stair
A floating stair bracket is not a complete stair system. It must work with the beam, stringer, stair frame, tread, railing, and surrounding structure.
Buying brackets without a complete design can create major coordination problems. The stair may look simple online, but the installed result depends on engineering logic and accurate fabrication.
Choosing Treads Before Confirming Support Details
Wood species, tread thickness, tread depth, and tread width all influence the bracket design. If the treads are selected without understanding the support method, the project may require redesign later.
This does not mean homeowners need to solve the engineering themselves. It means the tread preference should be shared early so the stair company can design the support system around it.
Treating Railing as a Separate Project
Railing should not be treated as an afterthought. It interacts with the stair structure, especially on open-riser and floating stair designs.
If the stair and railing come from different suppliers, coordination becomes even more important. The builder needs to know where railing posts, glass hardware, or cable posts will attach before fabrication is finalized.
Ignoring Field Conditions
A floating stair system must connect to a real building, not an idealized drawing. Floor structure, wall framing, slab conditions, landing geometry, and available installation access all matter.
This is why site photos, architectural drawings, and accurate dimensions are valuable. They help identify constraints before fabrication begins.
For examples of how finished systems can vary across real homes, see completed floating stair projects.
What to Prepare Before Requesting a Quote
A strong quote request does not need to be perfect, but it should give the stair team enough information to understand the project. Better inputs usually lead to a more accurate scope, fewer assumptions, and a smoother design process.
Before requesting a quote, try to prepare:
- floor-to-floor height
- stair opening dimensions
- desired stair width
- available total run
- number of floors or stair flights
- preferred stair layout
- site photos
- architectural drawings, if available
- desired tread material
- preferred railing style
- project location
- approximate timeline
- whether the project is new construction or remodeling
For bracket-related planning, the most useful details are the stair width, tread depth, tread thickness, stringer preference, railing direction, and any drawings showing floor or wall structure.
A professional quote is different from a generic estimate because it connects the visible design to the real support system. It should account for the stair beam or stringer, tread support brackets, wood treads, railing coordination, finish expectations, and shipping or project logistics where applicable.
If you already have drawings or site dimensions, you can use request a custom floating stair quote to move from rough planning to a project-specific review.
Key Takeaways
Floating stair brackets matter because they help determine how the stair performs, installs, and looks after completion. They support the treads, transfer loads into the steel structure, control alignment, and influence railing coordination.
The main lesson is simple: brackets should not be planned separately from the stair system. A well-designed bracket depends on the stair beam, floating stair stringer, tread material, railing choice, and site conditions.
For homeowners, this means the clean floating look requires more planning than it may appear. For builders, it means accurate drawings and clear installation sequencing matter. For architects, it means bracket detailing should support both the visual concept and the structural logic.
A serious floating stair project becomes easier when the core decisions are made early: structure type, tread size, railing system, finish, and site conditions. If those pieces are aligned before fabrication, the installation has a much better chance of looking clean, precise, and intentional.
For additional planning resources, visit floating stairs planning guides, or contact the team directly through discuss your stair project.
FAQ
Are floating stair brackets structural?
In many floating stair systems, brackets are part of the structural support assembly. They help transfer loads from the treads into the stair beam, stringer, wall structure, or stair frame. Final structural requirements depend on the project design, site conditions, and applicable code review.
Can I buy floating stair brackets separately?
Some basic brackets may be sold separately, but custom floating stairs usually require brackets designed around the complete stair system. Tread size, stair width, steel structure, railing choice, and installation conditions all affect bracket design. For high-end residential projects, brackets should be coordinated with the full stair package.
What is the difference between a floating stair bracket and a floating stair stringer?
A floating stair bracket supports or connects an individual tread. A floating stair stringer is the larger structural member, such as a mono stringer or side stringer, that carries the stair system. The bracket transfers load from the tread into the stringer or stair frame.
Do floating stair tread brackets affect the final look?
Yes. Bracket placement affects tread alignment, spacing, levelness, and the visual rhythm of the stair. If the brackets are inconsistent, the finished stair may show uneven gaps or misaligned treads.
Should railing be selected before the brackets are fabricated?
Yes, in most custom projects. Railing hardware may affect tread drilling, bracket placement, steel reinforcement, and installation sequence. Glass railing and cable railing systems each have different attachment requirements, so the railing direction should be confirmed early.
What information is needed to quote floating stair brackets accurately?
A stair company will usually need floor-to-floor height, stair width, tread depth, available run, layout, site photos, drawings if available, tread material, railing preference, and project location. The more complete the information, the easier it is to create a realistic project-specific quote.
