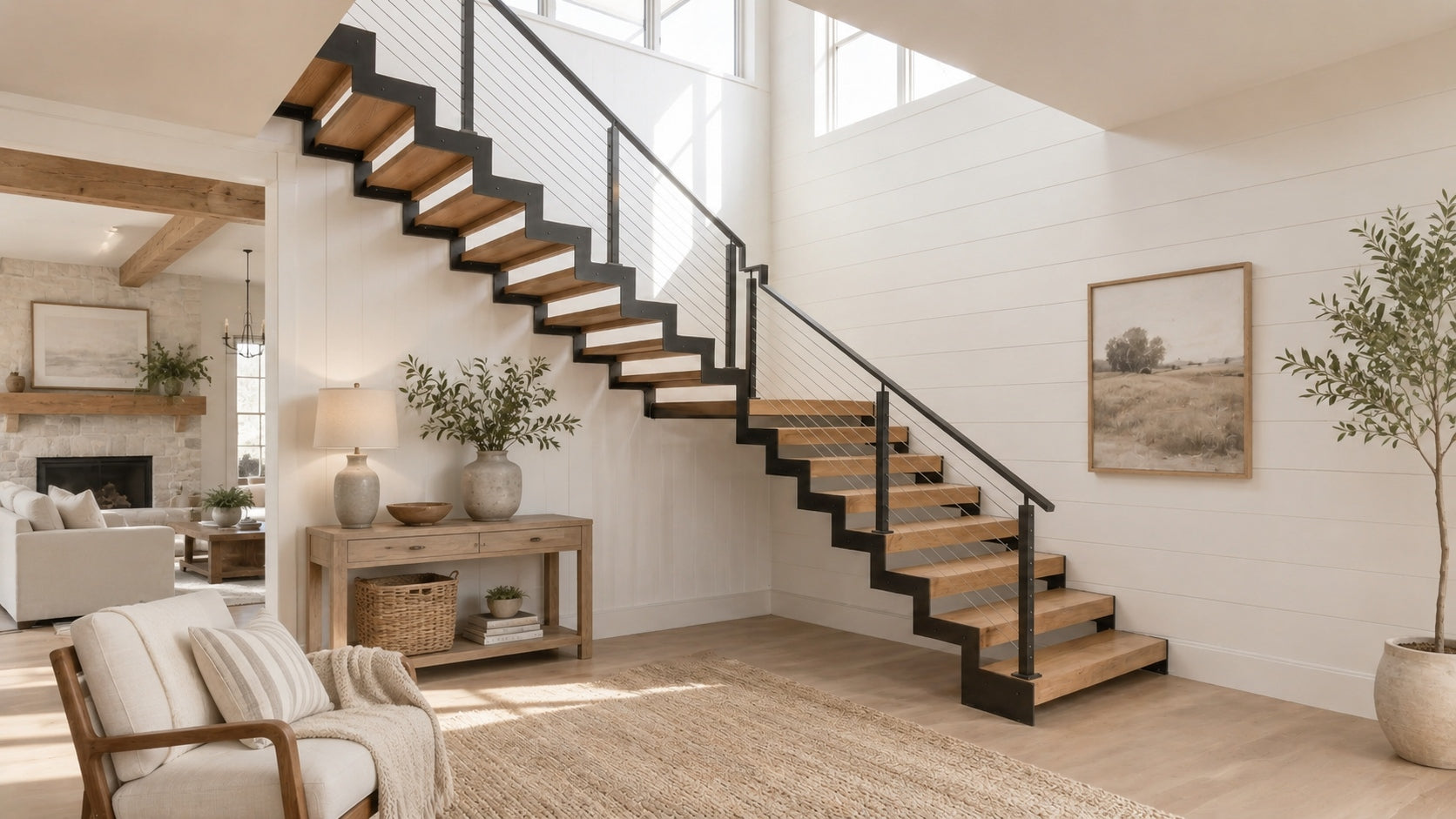

Floating Stairs Code Requirements: Safety, Open Risers, Railings, and Planning Basics

custom floating stairs are one of the most visually powerful features in a modern home. They can open up a room, bring more light through the space, and turn a stairway into an architectural statement instead of a bulky transition between floors.

But floating stairs are not only about appearance.

A successful floating stair project has to balance design, structure, safety, comfort, railing coordination, and local building code expectations. The cleaner the stair looks, the more carefully the details usually need to be planned behind the scenes.

This guide explains the key code-related issues homeowners, builders, designers, and architects should understand before planning custom floating stairs. It is not a substitute for local code review, engineering, or permit approval. Instead, it is a practical planning guide to help you understand which dimensions and design choices matter before requesting a quote or moving into production.

What Are Floating Stairs?

Floating stairs are stair systems designed to make the treads appear as if they are suspended in open space. Instead of using a heavy closed stair box, floating stairs usually rely on a more refined structural support system. You can explore different floating stair systems, including mono stringer, double stringer, concealed steel frame, wall-supported structure, or custom steel bracket designs.

Most floating stairs include several coordinated components:

• A steel support structure
• Thick wood or engineered stair treads
• Open risers
• A modern railing system
• Project-specific hardware and connection details
• Drawings or installation guidance for the local contractor

The “floating” effect often comes from the open space between the treads and the minimal appearance of the support system. That same openness is also why code, railing, and layout planning matter so much.

A floating stair should not only look light. It should also feel stable, be comfortable to walk on, and be planned around the conditions of the actual home.

Why Code Planning Matters More for Floating Stairs

Traditional stairs usually hide much of their structure. Closed risers, side walls, skirt boards, and framed stair boxes can make the system feel familiar to inspectors and contractors.

Floating stairs are different.

Because they often use open risers, visible steel support, exposed tread profiles, and glass or cable railing, small design decisions become more visible and more important. A change in tread thickness, stair width, rise height, railing type, or landing location can affect both the appearance and the compliance direction of the stair.

For example, a homeowner may focus on the look of thick white oak treads and clear glass railing. A builder may focus on how the steel stringer connects to the floor structure. An inspector may focus on riser height, tread depth, headroom, railing protection, handrail height, and openings between components.

A good floating stair project has to satisfy all three perspectives. For homeowners and builders comparing real design directions, our modern floating stair projects show how different stair layouts, railing choices, and interior styles can work in residential spaces.

That is why the best time to think about code is not after the stair is manufactured. It is at the beginning of the planning process, before the quote is finalized and before shop drawings are approved.

IRC vs. IBC: Which Code Applies to Floating Stairs?

In the United States, stair requirements often depend on the project type, location, and building classification.

For many single-family residential projects, the International Residential Code, commonly referred to as the IRC, is often the starting point. This is especially relevant for custom homes, remodels, and many homeowner-led floating stair projects.

For commercial buildings, public spaces, multi-family buildings, and some larger or more complex projects, the International Building Code, commonly referred to as the IBC, may apply instead.

This distinction matters because residential and commercial stair requirements can differ. Commercial stairways may have different expectations for width, tread depth, riser height, accessibility, egress, occupant load, and railing conditions.

For most homeowners planning floating stairs inside a single-family home, the practical first question is usually:

“Does my stair layout make sense for residential stair code review in my local jurisdiction?”

However, local requirements can vary. Cities, counties, and states may adopt different code versions, amendments, or interpretations. Some projects may also involve additional review from an architect, structural engineer, builder, or local inspector.

So the safest planning mindset is this:

Use common IRC-based requirements as an early design reference, but confirm final requirements with your local building department and project professionals.

Key Floating Stair Dimensions to Review Early

Before discussing style, railing, or wood species, a floating stair project should start with several basic dimensions. These dimensions affect not only code review, but also comfort, structure, manufacturing, shipping, and pricing.

Here are the major items to review early:

The more complete this information is, the more useful the quote will be.

A fast quote based only on “I need floating stairs” may look simple, but it is usually not reliable. A project-specific quote should reflect the actual stair opening, rise, run, railing scope, material direction, finish, and delivery needs.

Open Risers and the 4-Inch Sphere Rule

One of the most important code-related issues for floating stairs is the open riser.

An open riser is the vertical space between two stair treads. On many floating stairs, there is no solid board closing this space. That open gap is part of what makes floating stairs look light and modern.

However, open risers create a safety concern, especially when the stair is high above the floor below. In many residential code discussions, openings in open risers above a certain height must be limited so that a 4-inch diameter sphere cannot pass through.

In simple terms, the open space between treads cannot be too large.

This is especially important for floating stairs because homeowners often want a very open look. But if the rise between treads is too high and the tread thickness is not enough to reduce the opening, the stair may require design adjustments.

Possible solutions may include:

• Adjusting the number of risers
• Modifying tread thickness
• Adding partial infill
• Using a different tread profile
• Revising the stair geometry
• Coordinating with the local contractor or inspector before final approval

This is one of the reasons floor-to-floor height is so important. Without that number, it is difficult to determine how many risers the stair needs and whether the open riser condition is likely to be practical.

For floating stairs, the open riser is not just a visual detail. It is a design, safety, and compliance detail.

Riser Height: Why Floor-to-Floor Height Comes First

Riser height is the vertical distance from the top of one tread to the top of the next tread.

For residential stairs, a common IRC-based reference point is a maximum riser height of 7 3/4 inches. The exact requirement can depend on the code version and local amendments, but the principle is consistent: risers should be safe, consistent, and comfortable.

For floating stairs, riser height affects several things at once:

• Number of steps
• Walking comfort
• Overall stair length
• Open riser gap
• Landing location
• Steel stringer geometry
• Tread spacing
• Visual rhythm of the stair

If the floor-to-floor height is high, the stair may need more risers or a longer run to stay comfortable. If the available run is too short, the stair may become too steep. If the stair is too steep, it may feel uncomfortable and may create code concerns.

That is why a serious floating stair quote should always ask for floor-to-floor height.

This measurement should be taken from the finished lower floor to the finished upper floor. If the final flooring is not installed yet, the expected finished floor buildup should be considered.

For custom projects, small measurement errors can become real design problems later. A stair is not a loose furniture item. It is a built-in architectural system that has to fit between two finished floor levels.

Tread Depth: Why Floating Stairs Need More Than a Good Side Profile

Tread depth is the horizontal walking surface of each step. It affects how stable and comfortable the stair feels underfoot.

For many residential stair discussions, a common reference point is a minimum tread depth of 10 inches. Commercial projects may require deeper treads depending on the applicable code and use case.

For floating stairs, tread depth matters for both safety and appearance.

A deep, well-proportioned tread feels more comfortable and substantial. It also creates a stronger visual rhythm when paired with open risers. But tread depth also interacts with the available run. A stair with deeper treads needs more horizontal space.

This is why “available run” is one of the most important quote inputs.

The available run is the horizontal distance you have for the stair to travel from the lower level to the upper level or to a landing. If the available run is limited, the project may need a different layout, such as an L-shaped stair, U-shaped stair, or switchback stair.

A beautiful floating stair cannot ignore geometry. The stair has to fit the home, not just the mood board.

Headroom: The Hidden Issue Many Buyers Miss

Headroom is the clear vertical space above the stair walking path. It is one of the most common issues in remodels, basements, lofts, and projects with tight openings.

A floating stair may look visually open, but it still needs enough clearance for a person to walk comfortably without hitting the ceiling, floor edge, beam, or upper-level framing.

In many residential stair discussions, a common reference point is 6 feet 8 inches of minimum headroom. The exact measurement location and requirements should be confirmed with local code and professionals.

For floating stairs, headroom depends heavily on:

• Stair opening size
• Stair direction
• Floor thickness
• Upper-level framing
• Landing position
• Tread depth
• Riser count
• Available run

This is why stair opening dimensions matter so much. A homeowner may provide floor-to-floor height and desired width, but if the upper floor opening is too short or poorly positioned, the stair may not have enough headroom.

In some projects, the stair design may need to be adjusted before production. In other projects, the opening itself may need to be reviewed by a builder or architect.

A floating stair system can be custom-built, but it cannot ignore the physical limits of the building.

Stair Width: Design Preference, Comfort, and Railing Scope

Stair width affects comfort, cost, structure, and railing design.

Many residential stair references use 36 inches as a common minimum clear width. However, custom floating stairs are often designed wider for modern homes. Popular residential widths may include 36, 38, 40, 42, 44, 46, or 48 inches, depending on the project.

Wider stairs can feel more premium and more comfortable. They can also better suit double-height entries, open living areas, and luxury residential interiors.

But width affects more than appearance.

A wider floating stair may require:

• Larger wood treads
• Stronger or differently sized steel support
• More railing material
• More glass or cable railing coverage
• Different packaging and shipping considerations
• More careful installation coordination

These choices can also affect floating stairs pricing, especially when the project includes wider treads, glass railing, custom finishes, or more complex layouts.

For example, a 48-inch-wide floating stair with glass railing will usually have a different structural and budget profile than a 36-inch-wide stair with cable railing.

This does not mean wider is bad. It means width should be selected intentionally.

The best stair width is not automatically the largest width. It is the width that fits the space, the budget, the structure, the railing plan, and the visual goal.

Handrails, Guards, and Railing Systems

Floating stairs almost always need careful railing planning.

Because floating stairs are open and visually light, the railing system plays a major role in both safety and design. The railing is not an accessory added at the end. It is part of the complete stair system.

Common floating stair railing options include:

• Clear glass railing
• Metal cable railing
• Metal post railing
• Wall-mounted handrail
• Integrated handrail with glass or cable systems
• Custom mixed-material railing systems

Glass railing is popular because it preserves openness and keeps the stair visually clean. It works especially well in bright modern homes, double-height entries, and open-plan living spaces.

Cable railing creates a slimmer linear look. It can feel lighter, more understated, and slightly more industrial-modern. It is often a strong option when the homeowner wants openness but does not want the cost or visual presence of extensive glass.

From a code planning perspective, the key questions are not only “glass or cable?” but also:

• Where is the open side of the stair?
• Is a guard required at the stair or landing?
• Does the railing need a graspable handrail?
• What height is required?
• What spacing is allowed between cables, posts, glass panels, or other components?
• How will the railing connect to the stair, floor, or side structure?
• Will the local inspector accept the proposed railing detail?

This is where many low-cost stair kits can become risky. A stair package may look attractive online, but if the railing system is not coordinated with the stair geometry, local code expectations, and installation conditions, the project can become difficult later.

For custom floating stairs, railing should be reviewed together with the stair structure and treads.

Glass Railing vs. Cable Railing for Floating Stairs

Both glass railing and cable railing can work beautifully with floating stairs, but they serve different goals.

Glass railing is often best when the homeowner wants maximum transparency. It allows the wood treads and steel structure to remain visible while keeping the room open and bright. It is especially effective in modern interiors with large windows, stone floors, light wood flooring, and clean architectural lines.

Cable railing is often best when the homeowner wants a lighter, more linear look. The cables create horizontal lines that can pair well with matte black steel, stainless hardware, and warm wood treads. Cable railing can feel less formal than glass and may work well in contemporary, transitional, or mountain-modern homes.

However, railing choice should not be based only on style.

Glass railing may involve heavier panels, more careful handling, and precise hardware coordination. Cable railing requires attention to spacing, tension, post layout, and local interpretation of opening limitations.

The safest approach is to choose railing as part of the complete floating stair system, not as a separate last-minute decision.

Landing Requirements and Layout Planning

Many floating stair projects are not simple straight runs. A home may require a landing because of space limitations, floor plan flow, or design preference.

Common layouts include:

• Straight floating stairs
• L-shaped floating stairs
• U-shaped floating stairs
• Switchback floating stairs
• Floating stairs with intermediate landing
• Floating curved stairs
• Floating stairs with extended railing runs

Landings affect both code planning and cost.

A landing may be required because of vertical rise limits, direction changes, or project-specific layout needs. It also affects steel fabrication, railing transitions, tread counts, packaging, installation sequence, and budget.

For example, a U-shaped floating stair with a large landing is not simply two straight stairs placed together. The landing structure, support conditions, railing continuity, and field installation sequence all need to be coordinated.

This is why layout information is essential before quoting.

If a homeowner says, “I need a floating stair with a 90-degree turn,” the next questions should include:

• What is the floor-to-floor height?
• What is the available run before and after the turn?
• What is the landing size?
• Which direction does the stair turn?
• Are there walls nearby?
• Does the stair need to remain fully freestanding?
• Where will railing be required?
• Are drawings or site photos available?

For floating stairs, layout is not just a shape. It is a structural and compliance direction.

Mono Stringer, Double Stringer, and Wall-Supported Floating Stairs

Different floating stair structures create different visual and practical outcomes.

A mono stringer stair uses a single central steel support. It is one of the most recognizable floating stair systems because it creates a clean, open, architectural profile. It often works well in modern residential interiors where the homeowner wants a strong but minimal structure.

A double stringer stair uses two steel supports, often positioned near the sides of the treads. It can feel more grounded and may be useful for wider stairs, longer runs, or projects where the design calls for a more defined structural presence.

A wall-supported or concealed-support stair can create an even more minimal appearance, but it often requires more demanding wall structure and careful coordination with framing, blocking, and local installation conditions.

The best system depends on the project.

A mono stringer may be perfect for one home. A double stringer may be more appropriate for another. A wall-supported look may be beautiful, but only if the building conditions can support it.

This is why Elevated Stairs approaches floating stairs as custom project systems rather than one-size-fits-all stair kits. The structure, treads, railing, and installation conditions should be reviewed together.

Tread Thickness and Material Selection

Floating stair treads are highly visible. Their thickness, wood species, grain, finish, and edge profile shape the entire look of the stair.

Popular tread materials for modern floating stairs include:

• White oak
• Red oak
• Maple
• Beech
• Rubberwood
• Walnut
• Other project-specific hardwood or engineered options

White oak is especially popular in modern North American interiors because it pairs well with matte black steel, clear glass railing, warm neutral flooring, and clean architectural spaces.

But tread selection is not only about color.

Tread thickness and construction can affect:

• Visual weight
• Perceived quality
• Open riser spacing
• Structural performance
• Deflection control
• Connection details
• Shipping weight
• Final budget

For wider floating stairs, tread design may require additional structural review. In some cases, steel-reinforced wood treads or other reinforcement strategies may be considered to improve performance while keeping the exterior appearance clean.

The right tread is not simply the thickest tread or the most expensive wood. It is the tread that works with the steel structure, railing plan, stair width, project budget, and interior design direction.

Why Local Code Review Still Matters

A floating stair supplier can help plan the stair system, prepare drawings, coordinate dimensions, and manufacture project-specific components. But final code acceptance depends on the local authority having jurisdiction, commonly called the AHJ.

That means a stair detail that is commonly accepted in one area may still require clarification in another.

Local review may consider:

• Adopted code version
• Local amendments
• Project type
• Permit requirements
• Use of the stair
• Guard and handrail interpretation
• Railing infill spacing
• Structural calculations
• Engineer or architect involvement
• Inspector preference or local enforcement practice

This is not unique to floating stairs. It is true for many building products. But because floating stairs are more visually open and structurally specialized, it is especially important to review details early.

The goal is not to make the homeowner responsible for solving every code issue. The goal is to collect the right information early so the stair direction can be reviewed intelligently before production.

What to Prepare Before Requesting a Floating Stairs Quote

If you are planning floating stairs, the quote process will be smoother if you prepare the right information before you request a floating stairs quote.

Here is a practical checklist:

• Project location
• Floor-to-floor height
• Stair opening dimensions
• Available run
• Desired stair width
• Layout direction
• Site photos
• Architectural drawings if available
• Preferred stair structure
• Tread material preference
• Tread finish direction
• Railing preference
• Interior or exterior application
• Target timeline
• Any local code or permit concerns already identified by your contractor

You do not need to have every detail finalized before contacting a stair supplier. But the more information you provide, the more accurate and useful the early review can be.

For example, if you already know your floor-to-floor height, desired width, available run, and railing preference, the project can move much faster than if the request only says, “I want floating stairs.”

A good floating stair quote should clarify the likely structure, tread direction, railing scope, finish, production considerations, and delivery needs.

Common Mistakes to Avoid When Planning Floating Stairs

Many floating stair problems begin early, before anyone places an order.

Here are some common mistakes to avoid.

Mistake 1: Choosing the look before checking the space

A reference image is helpful, but the stair must fit the actual home. Floor height, opening size, available run, and headroom come first.

Mistake 2: Ignoring the open riser gap

Floating stairs often have open risers, but the gap between treads still needs to be reviewed for safety and code expectations.

Mistake 3: Treating railing as optional

The railing system is part of the stair’s safety and visual identity. It should be planned together with the structure and treads.

Mistake 4: Comparing custom stairs to simple kits only by price

A low kit price may not include the same level of project-specific structure, railing coordination, drawings, finish control, shipping support, or installation guidance.

Mistake 5: Waiting too long to involve the contractor

Your local contractor or builder should understand how the stair will connect to the building, what site conditions are required, and whether any framing or blocking needs to be prepared.

Mistake 6: Assuming every jurisdiction interprets stair details the same way

Local code review matters. It is better to clarify expectations early than to redesign after production.

Are Floating Stairs Safe?

Floating stairs can be safe when they are properly designed, manufactured, installed, and reviewed for the project conditions.

The floating appearance does not mean the stair is unsupported. A well-designed floating stair uses steel structure, carefully sized treads, coordinated railing, and appropriate connection details to create both visual openness and functional strength.

Safety depends on the whole system:

• Stair geometry
• Structural support
• Tread design
• Railing and handrail layout
• Installation quality
• Building connection points
• Local code compliance
• Proper use and maintenance

A floating stair should feel solid underfoot. It should not feel like a decorative object. It is a structural architectural feature, and it should be planned that way.

Floating Stairs for Remodels vs. New Construction

Floating stairs can be used in both remodels and new construction, but the planning process can differ.

In new construction, the stair opening, framing, floor structure, and surrounding walls can often be planned around the stair earlier. This can make it easier to coordinate the ideal layout, support conditions, and railing scope.

In remodels, the project has to work with existing site conditions. The opening may already be fixed. The walls may or may not have the structure needed for certain support types. The available run may be limited. Existing flooring and framing conditions may affect installation.

This does not mean floating stairs are impossible in remodels. It means the site review matters.

For remodels, site photos and drawings are especially valuable. Photos of the lower floor, upper opening, side walls, ceiling conditions, and surrounding structure can help identify potential issues early.

Interior vs. Exterior Floating Stairs

Most floating stairs are used inside modern residential spaces, but some projects involve exterior applications.

Exterior floating stairs require additional planning. Weather exposure, water drainage, corrosion protection, surface finish, tread material, railing durability, and local environmental conditions all matter.

For exterior stairs, the project may require:

• Weather-resistant steel finish
• Proper coating system
• Slip-resistant tread strategy
• Drainage consideration
• Corrosion-resistant hardware
• Exterior-rated railing materials
• Maintenance planning
• Additional local code review

An interior floating stair and an exterior floating stair should not be treated as the same product. The appearance may be similar, but the performance environment is very different.

How Elevated Stairs Helps with Floating Stair Planning

Elevated Stairs designs and builds custom floating stair systems for modern residential projects across the United States. Our focus is not only on the visual appearance of the stair, but on the complete project direction: steel structure, wood treads, railing coordination, finish, drawings, packaging, delivery, and support for your local installation team.

A typical floating stair discussion starts with the project basics:

• Where is the project located?
• What is the floor-to-floor height?
• What are the stair opening dimensions?
• What layout are you considering?
• What width do you prefer?
• Do you want glass railing, cable railing, or another railing direction?
• Do you already have drawings or site photos?
• What is your target timeline?

From there, our team can help review your project details, discuss the stair system direction, and prepare a project-specific quote.

The earlier these details are discussed, the easier it is to avoid surprises later.

Final Thoughts: Floating Stairs Need Design and Discipline

Floating stairs are popular because they make a home feel open, modern, and architectural. But the best floating stairs are not just beautiful. They are carefully planned.

A successful project requires more than choosing a reference photo. It requires the right dimensions, the right structure, the right treads, the right railing system, and the right local review process.

If you are planning custom floating stairs, start with the essentials: floor-to-floor height, stair opening, available run, desired width, layout direction, railing preference, site photos, and drawings if available.

Once those details are clear, the design conversation becomes much more productive. If you are still unsure which stair structure, railing system, or layout direction fits your home, you can contact Elevated Stairs to start the discussion.

Floating stairs should feel light in the room, but the planning behind them should be solid.

FAQ

Do floating stairs meet building code?

Floating stairs can meet building code when they are designed, manufactured, installed, and reviewed properly for the project location and building type. The key is not the floating appearance itself, but whether the stair geometry, open risers, railing, handrail, headroom, tread depth, and structural details satisfy the applicable requirements.

Are open risers allowed on floating stairs?

Open risers are commonly used on floating stairs, but the open space between treads needs to be reviewed carefully. In many residential code discussions, open riser gaps above a certain height must not allow a 4-inch diameter sphere to pass through. Local requirements should always be confirmed.

What information do I need before requesting a floating stairs quote?

The most useful information includes project location, floor-to-floor height, stair opening dimensions, available run, desired stair width, layout direction, site photos, drawings, tread preference, railing preference, and timeline.

What is the best railing for floating stairs?

The best railing depends on the project. Glass railing is ideal for a clean, transparent, modern look. Cable railing creates a lighter linear appearance and can work well with steel and wood. The right choice should consider safety, code review, budget, installation conditions, and interior style.

Are floating stairs safe for homes with children?

Floating stairs can be designed with safety in mind, but families with children should pay close attention to open riser gaps, railing infill spacing, guard height, handrail design, and local code requirements. A more open design may need adjustments to improve safety.

How wide should floating stairs be?

Many residential stair references begin around a 36-inch minimum clear width, but custom floating stairs are often designed wider for comfort and visual impact. Common project widths may include 36, 38, 40, 42, 44, 46, or 48 inches. The right width depends on the space, structure, railing, and budget.

Do floating stairs need a handrail?

In many residential stair code discussions, stairs with four or more risers require a handrail on at least one side. However, the exact requirement depends on local code, stair layout, and railing design. It is best to confirm with your local building department or contractor.

Can floating stairs be used in remodel projects?

Yes, floating stairs can be used in remodels, but existing conditions matter. The stair opening, floor structure, wall framing, available run, and headroom should be reviewed before finalizing the design.

Are floating stairs more expensive than traditional stairs?

Floating stairs are often more expensive than basic site-built stairs because they usually involve custom steel structure, thick treads, modern railing systems, finish coordination, shipping, and more detailed planning. The final cost depends on layout, size, materials, railing scope, finish, and project complexity.

How early should I plan floating stairs?

Floating stairs should be planned as early as possible, especially in new construction or major remodels. Early planning helps coordinate the stair opening, framing, railing, finish direction, budget, and installation sequence before the project becomes harder to adjust.

Want to keep planning your stair project? Explore more floating stairs guides on design, pricing, materials, railing options, and project preparation.
